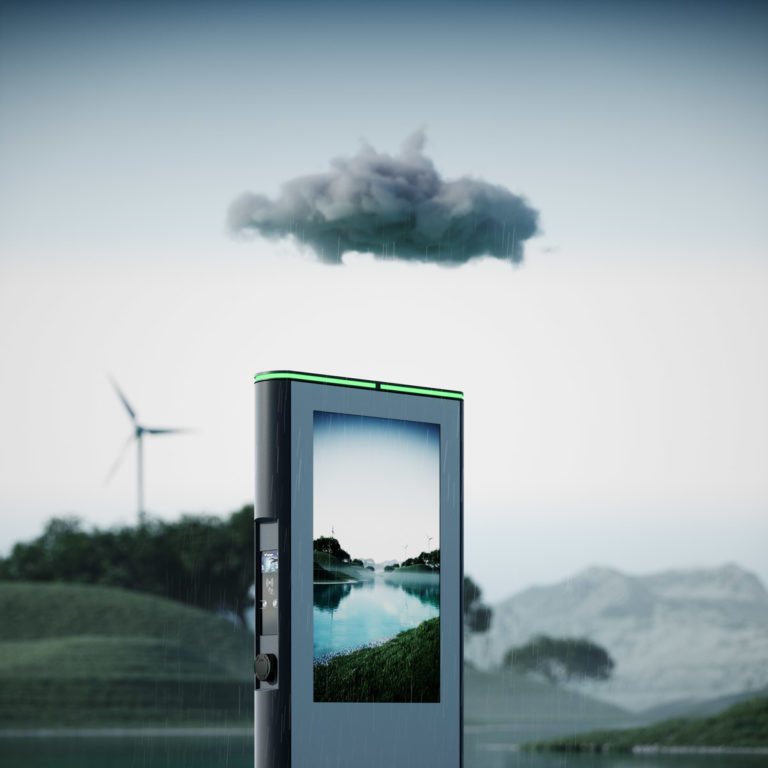

The charging station TE-P46

impressive & multimedia-based

Die TE-P46 überzeugt nicht

The TE-P46 does not only impresses with the 46-inch screen diagonal, which opens up extensive advertising and representation options, but also with its impressive size of 897 x 2,108 x 194 mm (W x H x D).

The charging station TE-P46 is available in two basic variants

TE-P46 Specs

Downloads

compatible with:

Technical Data

Screen 46 inch colour display, 1080 x 1920 pixel resolution, 256 colours, transflective
Dimensions (W x H x D) 897 x 2.108 x 194 mm
Operating temperature -25°C bis 50°C
Charging connector 2 x IEC 62196 Typ 2, 22 kW
Maximum charging power 44kW-63A/ 3Phasen, ∅35mm²
Communication journal OCPP 1.6 (2.0 in preparation)
Mobile communication Connection via GPRS, UMTS, LTE
Loadmanagement static load management, dynamic load management (local & OCPP)
Charging standards IEC 62196-2, VDE-AR-E2623-2, IEC 60309, IEC 61851-1, SEV 1011
Safety standards IP 54/44 according to IEC 60529, protection class 1 according to DIN EN 61140, CE „Class A“ according to EU directive 2004/108/EG, DIN EN 55022, DIN EN 61439-1
Approved backends for the Technagon charging stations ChargeCloud, Driivz, E-Car OC, ENIO, be.ENERGISED – has·to·be, NTT Data, Smartlab, Swarco ARGOS, Virta, etc.
TE_P46_technagon_ladestation

Are you interested in the TE-P46?

Contact us!

Optional features for the TE-P46

Individual and original

EgIt doesn’t matter whether it’s your logo on the charging station, the charging station with an all-over look to match your company’s design, or the production of a charging station in the color of your choice – there are almost no limits to the possibilities for customizing your charging station.

Flexibility and individuality - this is Technagon..

That’s why you also have the option of equipping a Technagon charging station with your own technology. We can also develop individual components for you

Do you have questions for individual configurations?

Feel free to contact us!

OutsideConstruction by Technagon

Insideder Technagon Ladecontroller

Unsere Displaysinformativ & intuitiv
